型号：MD1500D11A
品牌：REDER
单位：PCS
发货周期：30 days
描述：Heavy Duty Modular Drawer Cabinet – 11 Drawers Tool Storage Organizer, Steel Construction,59\" H x 28.5\" W x 22.5\" D
11 Drawers-Modular Drawer Cabinet MD1500D11A
批量采购优惠
起订量：1
商品介绍
- 1、Industrial grade heavy duty storage cabinet with all welded steel construction and powder coated finish, scratch and corrosion resistant powder coating protects steel.

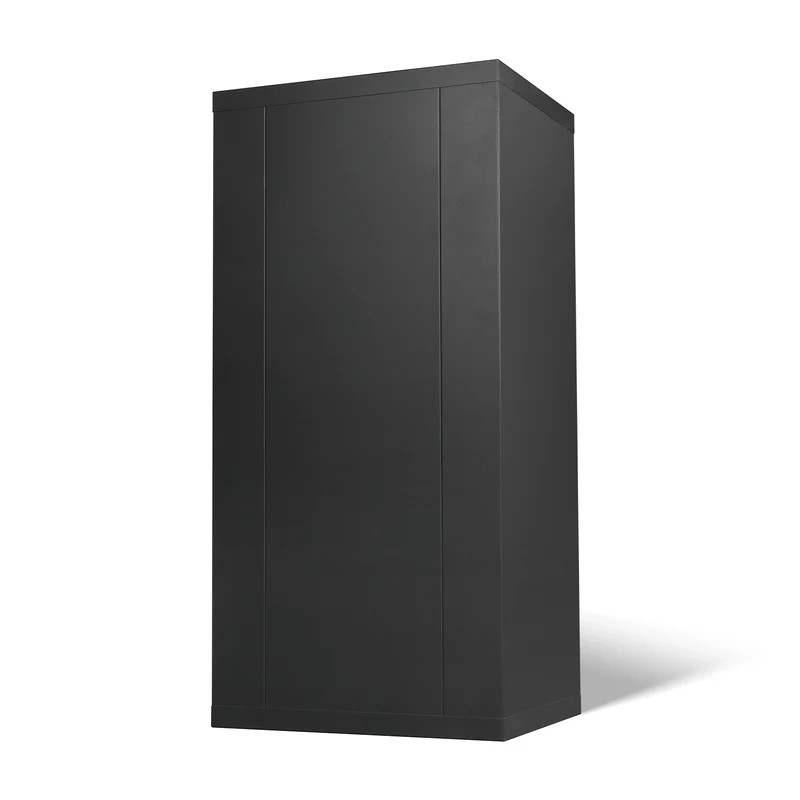

- 2、Cabinet dimensions: 28.5" W × 22.5" D × 59" H",includes 11 drawers.
- 3、The cabinet is equipped with a safety interlocking drawer system that allows only one drawer to be opened at a time, preventing tipping and ensuring user safety.

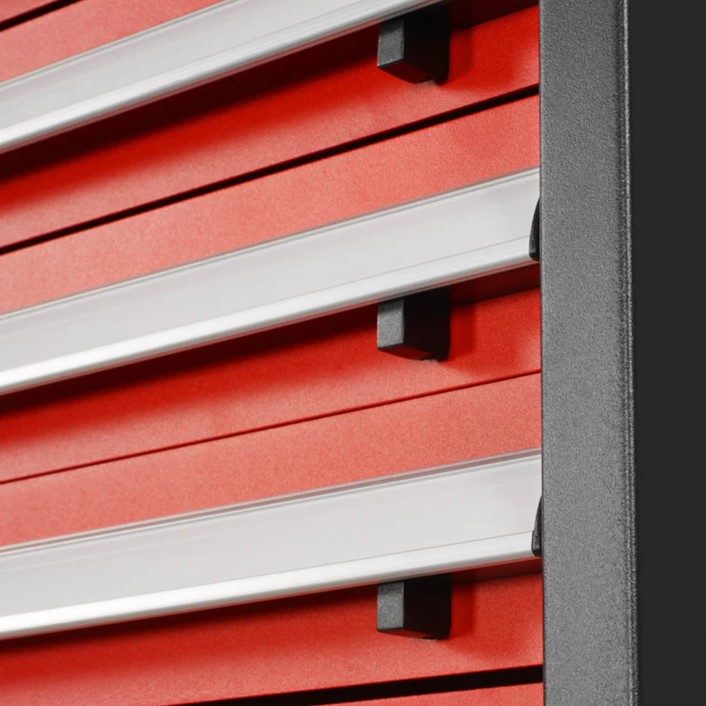

- 4、Each drawer has full-width handles for a flush, front with integrated label holder and plastic covers for quick identification of drawer contents.

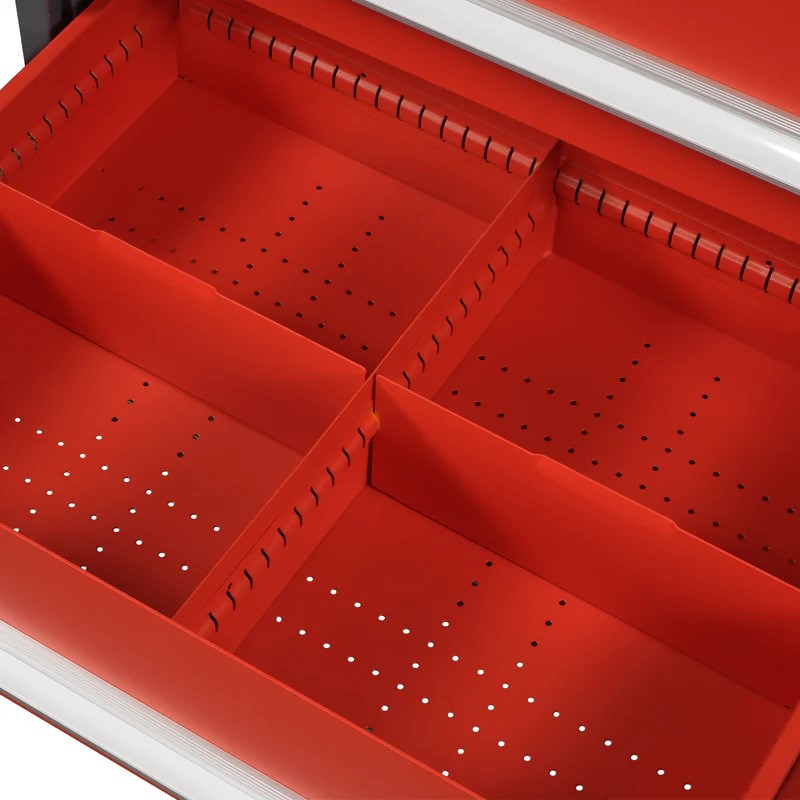

- 5、The drawer compartments feature a modular design, allowing the dividers to be adjusted to create compartments of various sizes as needed.

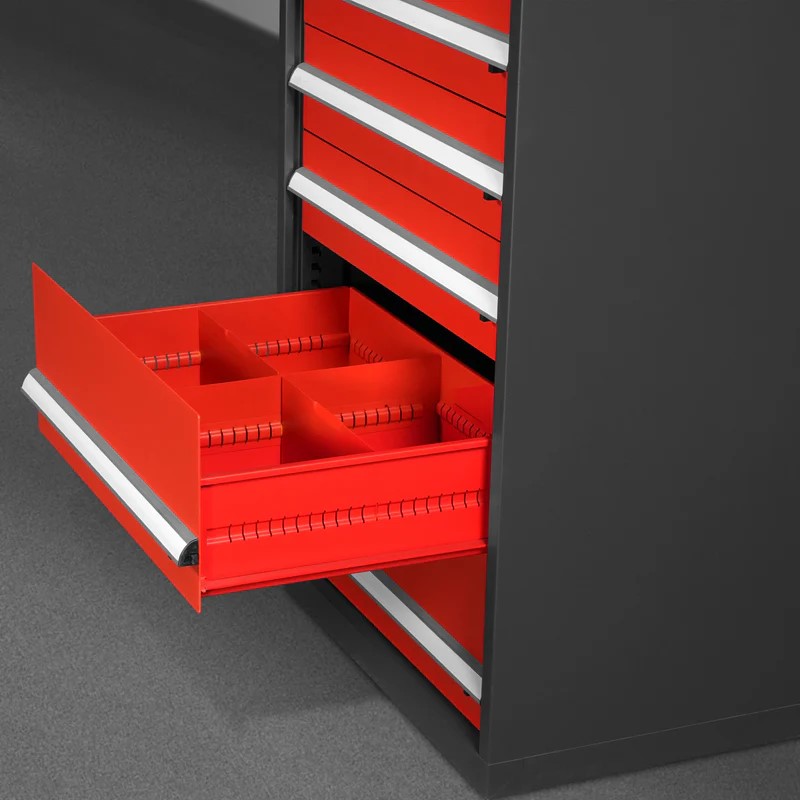

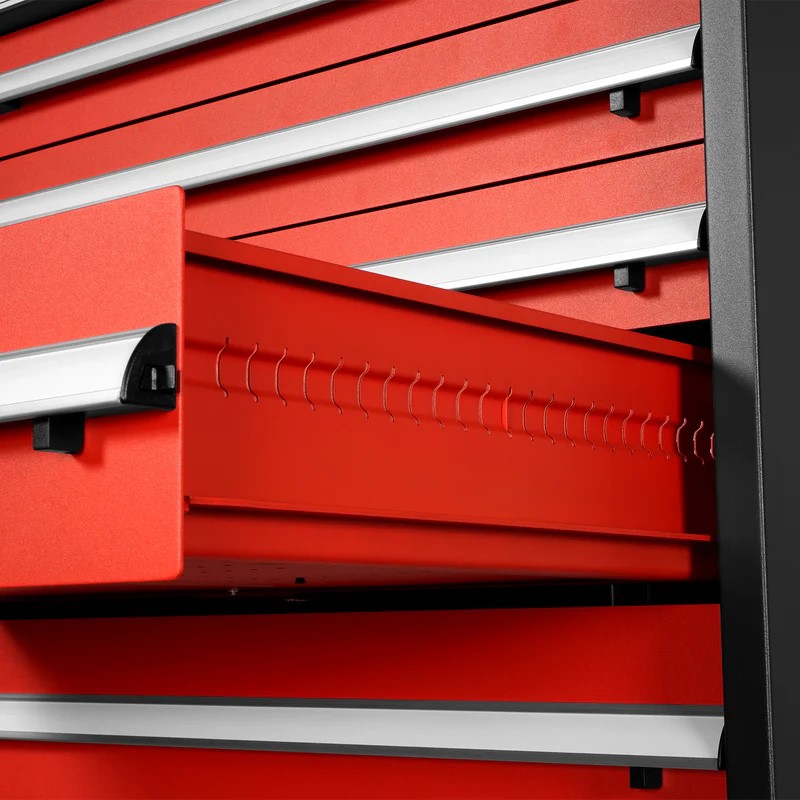

- 6、Cabinet fitted with single guide rails drawer.The single rail offers 80% drawer extension,drawer weight capacity is 176 LBS,
规格参数
|
Model |
MD1500D11A |
|
Number of Drawers |
11PCS |
|
Drawers Rail Type |
Single Guide Rail |
|
Drawers Height |
Single Rail 2.9"x4 | 3.9"x3 | 5.9"x2 | 9.8"x2 |
|
Drawer Extension |
Single Rail 80% |
|
Drawer Weight Capacity |
Single Rail 176LBS |
|
Drawer Inside Width&Depth |
24.1" x 18.1" |
|
Drawer Compartment |
2*2 Each Drawer |
|

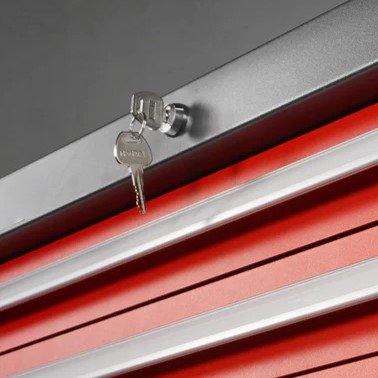

Lock Type |
Keyed |
|
Drawer Plate Thickness |
2.0mm |
|
Body Thickness |
1.0mm |
|
Cabinet Body Thickness |
1.0mm |
|
Column Thickness |
1.5mm |
|
Slide Rail Thickness |
3.0mm |
|
Material |
Q235 Cold Rolled Steel |
|
PlateOverall Size |
28.5" x 22.5" x 59" |
|
Packing Size |
30.3" x 24.3" x 65" |
|
N.W. |
342 LBS |
|
G.W. |
366 LBS |
