型号：MD1500D11B
品牌：REDER
单位：PCS
发货周期：30 days
描述：Heavy Duty Modular Drawer Cabinet – 11 Drawers Tool Storage Organizer, Steel Construction,59‘’H ×28.5‘‘W ×28.5‘’D

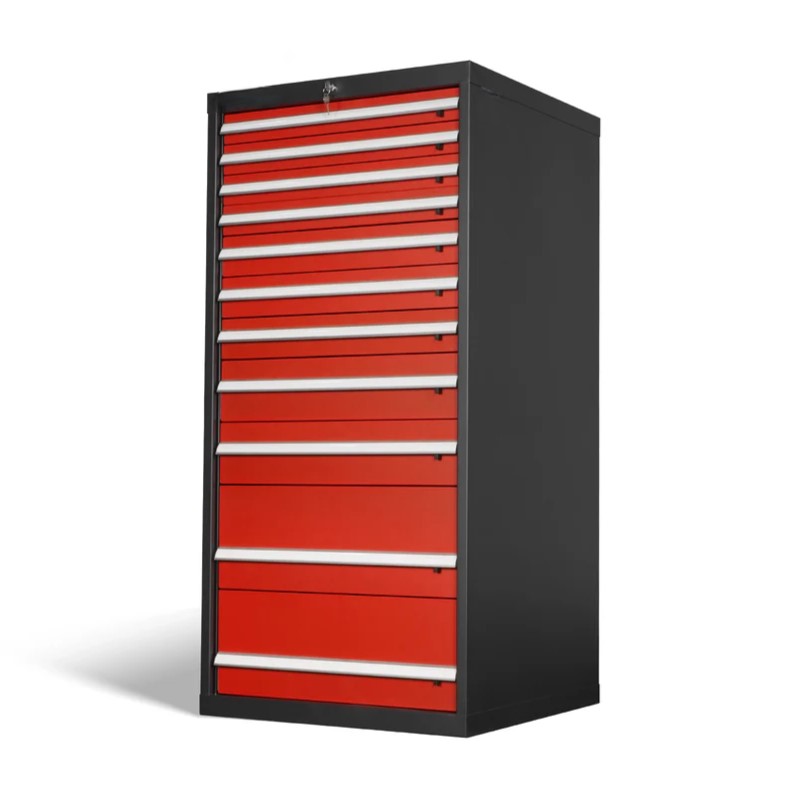

11 Drawers-- Modular Drawer Cabinet -MD1500D11B
批量采购优惠
起订量：1
商品介绍

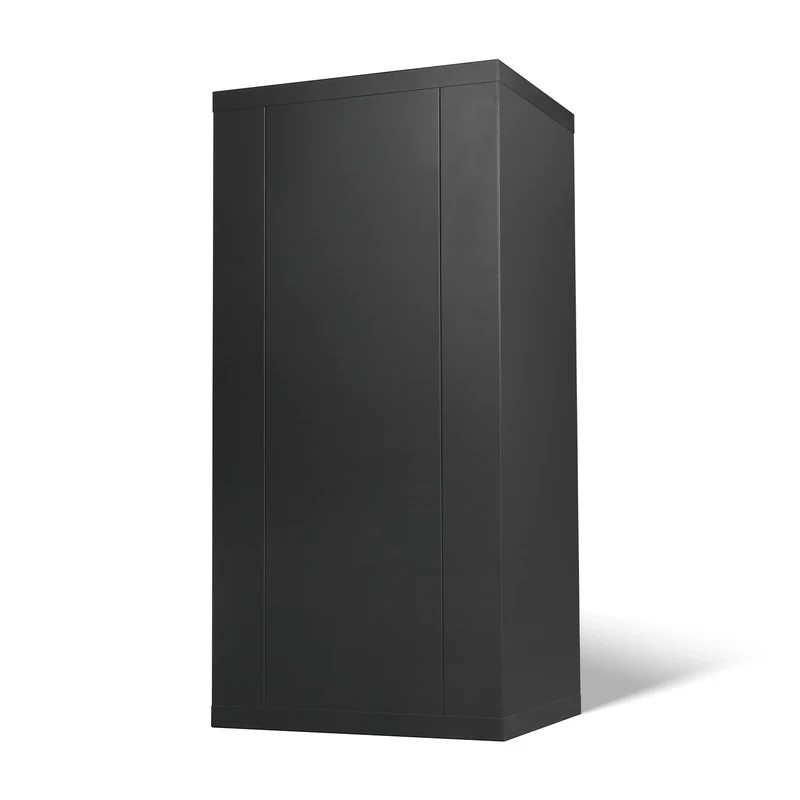

1、Industrial grade heavy duty storage cabinet with all welded steel construction and powder coated finish, scratch and corrosion resistant powder coating protects steel.

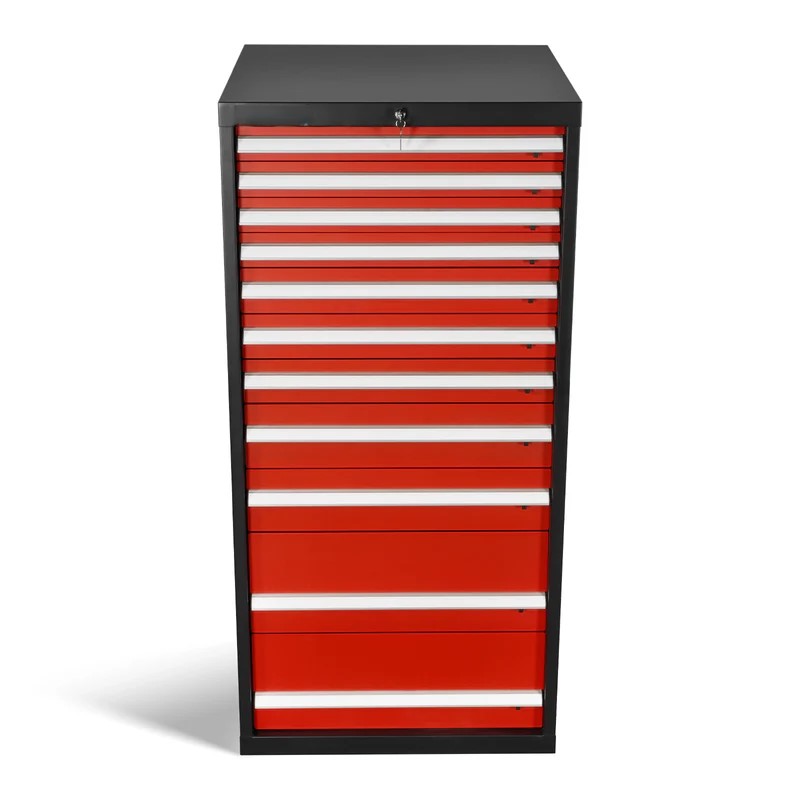

2、Cabinet dimensions: 28.5" W × 28.5" D × 59" H",includes 11 drawers.
3、The cabinet is equipped with a safety interlocking drawer system that allows only one drawer to be opened at a time, preventing tipping and ensuring user safety.

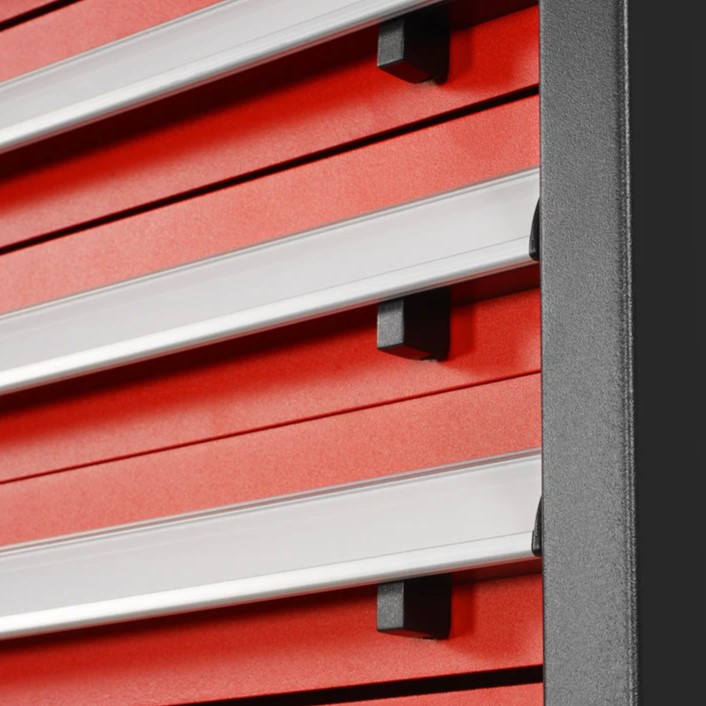

4、Each drawer has full-width handles for a flush, front with integrated label holder and plastic covers for quick identification of drawer contents.

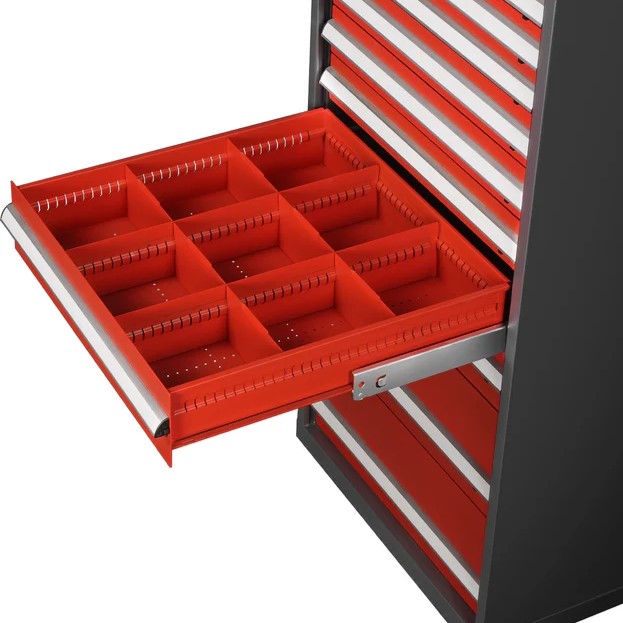

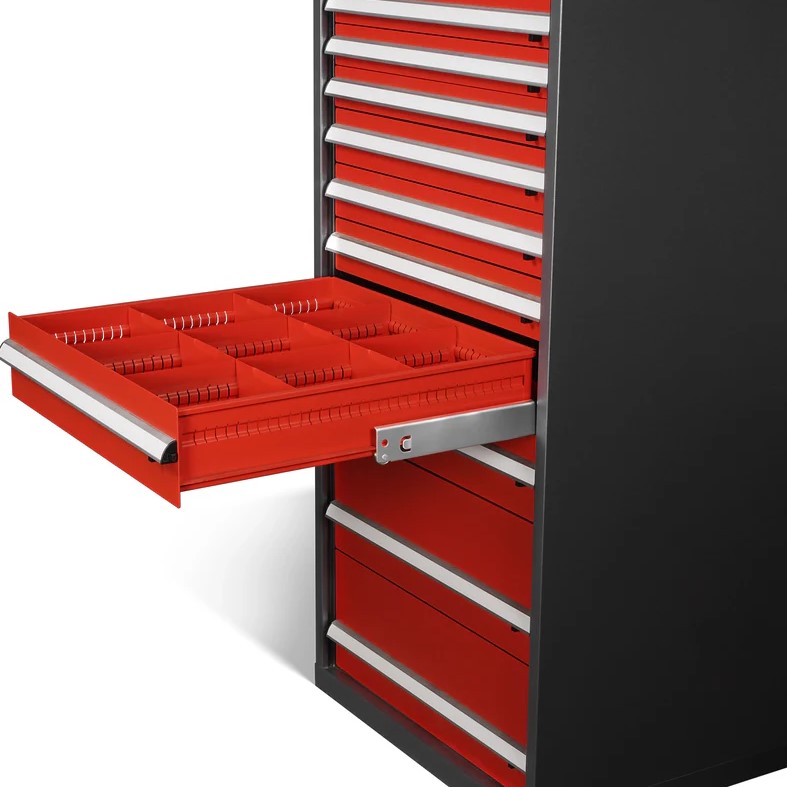

5、The drawer compartments feature a modular design, allowing the dividers to be adjusted to create compartments of various sizes as needed.
2、Cabinet dimensions: 28.5" W × 28.5" D × 59" H",includes 11 drawers.
3、The cabinet is equipped with a safety interlocking drawer system that allows only one drawer to be opened at a time, preventing tipping and ensuring user safety.
4、Each drawer has full-width handles for a flush, front with integrated label holder and plastic covers for quick identification of drawer contents.
5、The drawer compartments feature a modular design, allowing the dividers to be adjusted to create compartments of various sizes as needed.

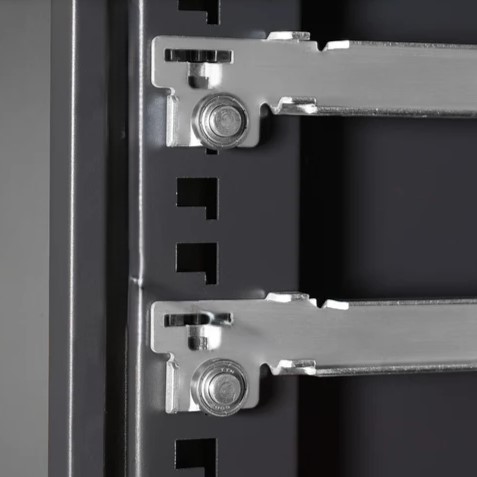

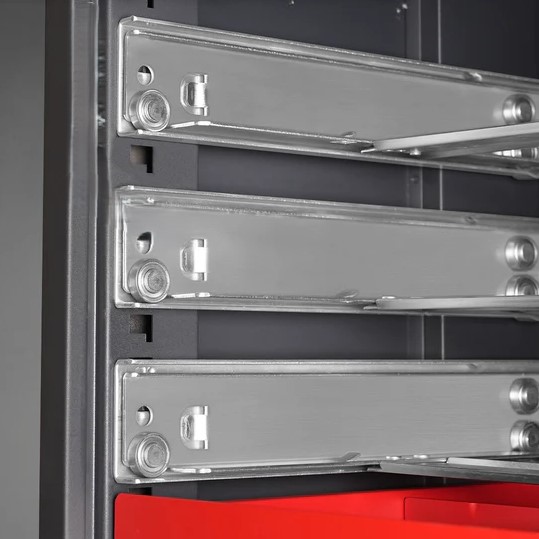

6、Cabinet fitted with single and double guide rails drawer.The single rail offers 80% drawer extension,drawer weight capacity is 176 LBS, The double guide rails offers 100% extension,drawer weight capacity is 264 LBS.
 |
 |
|
The single rail offers 80% drawer extension,drawer weight capacity is 176 LBS |
The double guide rails offers 100% extension,drawer weight capacity is 264 LBS. |
规格参数
|
Model |
MD1500D11B |
|
Number of Drawers |
11PCS |
|
Drawers Rail Type |
Single&Double Guide Rail |
|
Drawers Height |
Single Rail 2.9"x4 Double Rail 3.9"x3 | 5.9"x2 | 9.8"x2 |
|
Drawer Extension |
Single Rail 80%/Double Rail 100% |
|
Drawer Weight Capacity |
Single Rail 176LBS/Double Rail 264LBS |
|
Drawer Inside Width&Depth |
24.2" x 24.2" |
|
Drawer Compartment |
3*3 Each Drawer |
|

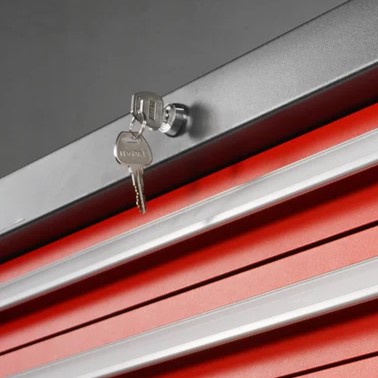

Lock Type |
Keyed |
|
Drawer Plate Thickness |
2.0mm |
|
Drawer Body Thickness |
1.0mm |
|
Cabinet Body Thickness |
1.2mm |
|
Column Thickness |
1.5mm |
|
Slide Rail Thickness |
3.0mm |
|
Material |
Q235 Cold Rolled Steel |
|
PlateOverall Size |
28.5" x 28.5" x 59" |
|
Packing Size |
30.3" x 30.3" x 65" |
|
N.W. |
520 LBS |
|
G.W. |
549 LBS |
